Minelab's range of landmine metal detectors have unique and patented technology to ensure superior results in the detection of mines, IEDs, unexploded ordnance and cluster munitions.

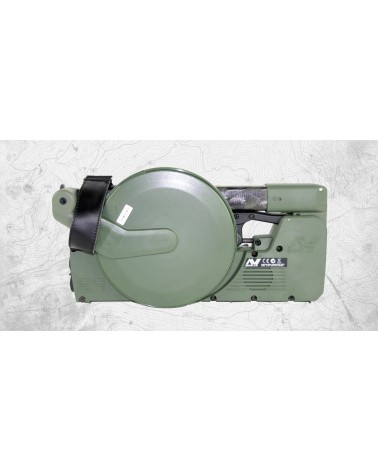

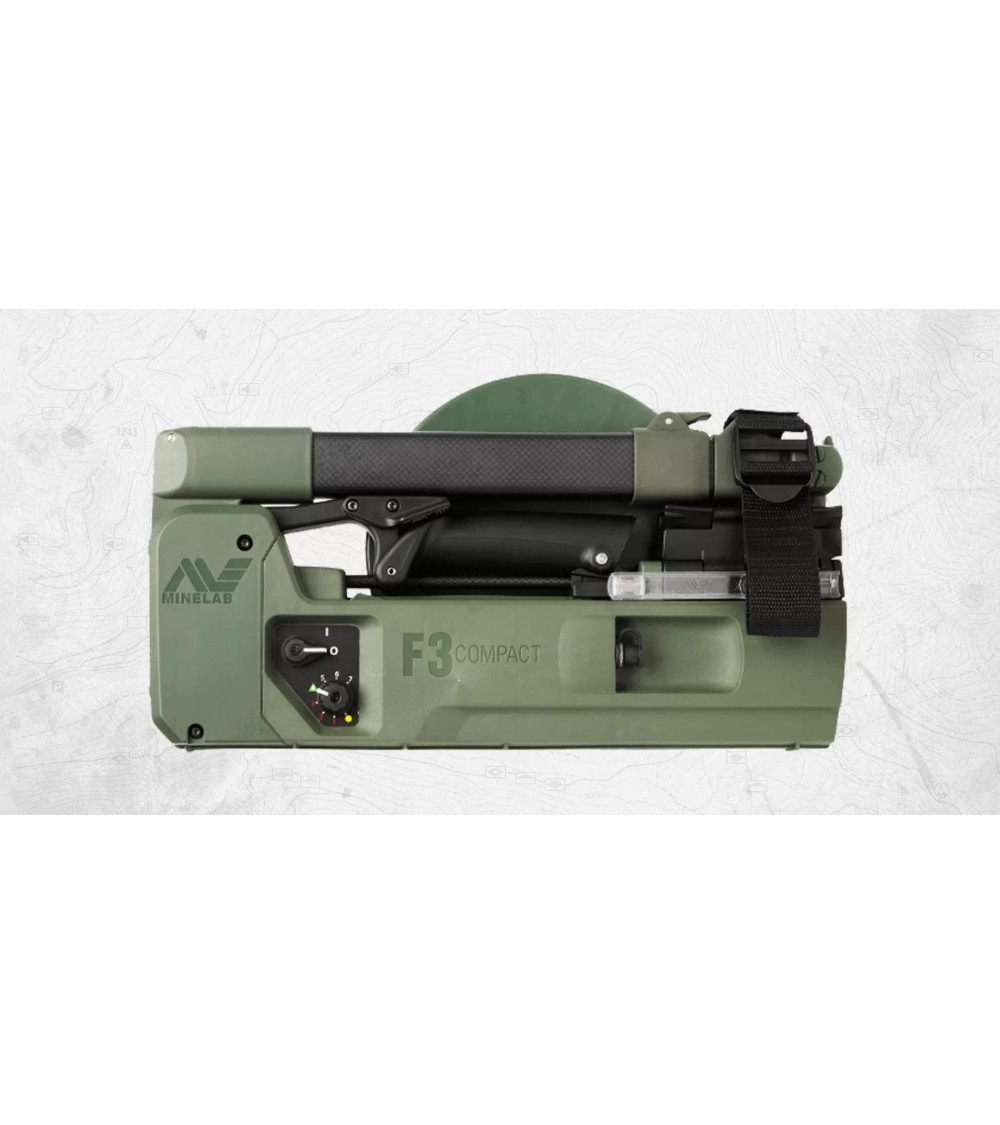

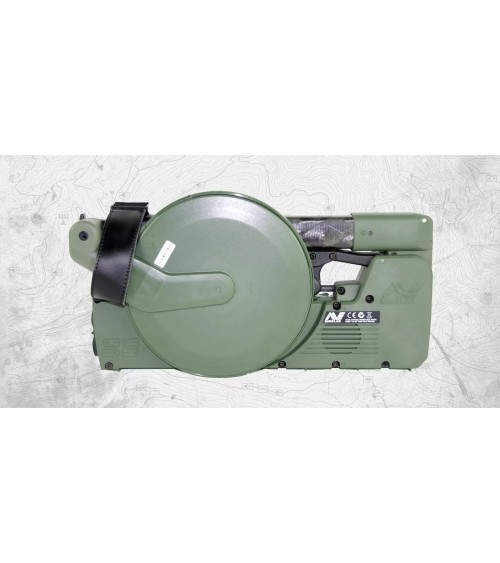

The F3 Compact incorporates all of the capabilities of the proven standard F3 detector but uses a new mechanical platform that greatly reduces the packed volume and weight of the equipment.
Capable of detecting all metal and minimum metal mines at variable sensitivity through the selection of seven uniquely combined audio and sensitivity configurations regardless of the mineralised content of soil while it minimises risk of initiating magnetic influence mines.
Uniform sensitivity across the surface of the search head eliminating any blind spots – provision of a ‘Confidence Tone’ during operation and comprehensive Built-In-Test systems to monitor and confirm detector functionality.
Simple to operate, with intuitive well positioned controls while including a RS232 port for data logging.

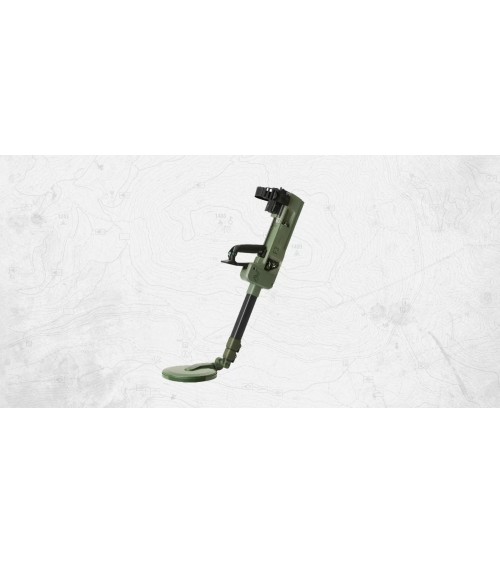

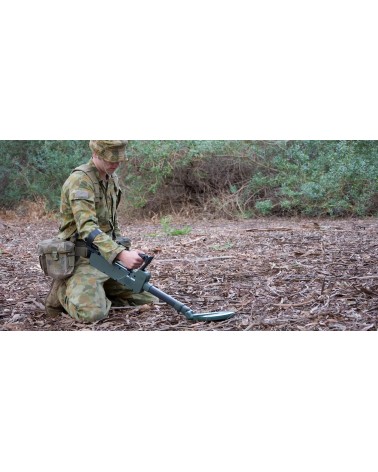

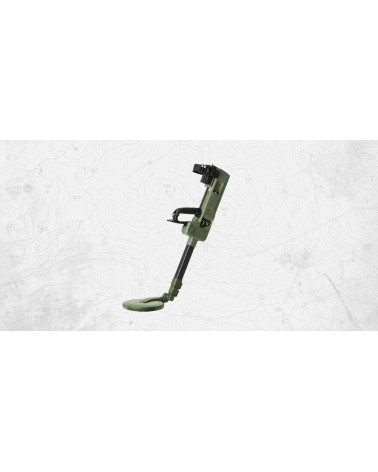

Minelab - F3 Compact
CHF5,700.00
Minelab's range of landmine metal detectors have unique and patented technology to ensure superior results in the detection of mines, IEDs, unexploded ordnance and cluster munitions.
The F3 Compact incorporates all of the capabilities of the proven standard F3 detector but uses a new mechanical platform that greatly reduces the packed volume and weight of the equipment.
Capable of detecting all metal and minimum metal mines at variable sensitivity through the selection of seven uniquely combined audio and sensitivity configurations regardless of the mineralised content of soil while it minimises risk of initiating magnetic influence mines.
Uniform sensitivity across the surface of the search head eliminating any blind spots – provision of a ‘Confidence Tone’ during operation and comprehensive Built-In-Test systems to monitor and confirm detector functionality.
Simple to operate, with intuitive well positioned controls while including a RS232 port for data logging.
Secure payment : Paypal, Swissbilling, Twint or bank transfer .
Fast delivery in Switzerland
and throughout Europe
Product return within 14 days
Minelab's range of landmine metal detectors have unique and patented technology to ensure superior results in the detection of mines, IEDs, unexploded ordnance and cluster munitions.
The F3 Compact incorporates all of the capabilities of the proven standard F3 detector but uses a new mechanical platform that greatly reduces the packed volume and weight of the equipment.
Capable of detecting all metal and minimum metal mines at variable sensitivity through the selection of seven uniquely combined audio and sensitivity configurations regardless of the mineralised content of soil while it minimises risk of initiating magnetic influence mines.
Uniform sensitivity across the surface of the search head eliminating any blind spots – provision of a ‘Confidence Tone’ during operation and comprehensive Built-In-Test systems to monitor and confirm detector functionality.
Simple to operate, with intuitive well positioned controls while including a RS232 port for data logging.
Effective
Capable of detecting all metal and minimum metal mines at variable sensitivity through the selection of seven uniquely combined audio and sensitivity configurations regardless of the mineralised content of soil while it minimises risk of initiating magnetic influence mines.
Safe
Uniform sensitivity across the surface of the search head eliminating any blind spots – provision of a ‘Confidence Tone’ during operation and comprehensive Built-In-Test systems to monitor and confirm detector functionality.
Easy to Use
Simple to operate, with intuitive well positioned controls while including a RS232 port for data logging.
F3 Compact Landmine Detector by Minelab Tech Specs
Application
Detection of ERW (explosive Remnants of War), Landmines, IEDs and UXO, for Military, Security and Humanitarian Clearance.
Technology
Pulse Induction: Bi-polar Multi Period Sensing (MPS).
Frequency/Transmission
1.25 kHz +/- 3% PRF
Coil (standard)
200 mm Monoloop Coil
Audio Output
Internal Loudspeaker and Earset
Headphones Supplied
Earset (Versions: Speaker OFF or Speaker ON)
Visual Display
LED Display
Backlight
No
Product ID
254257
USB Connectivity
No
Memory
-
Depth Indication
-
Detect Modes
-
Discrimination
-
Timings
-
Audio tone
-
Audio Type
-
Ground Balance
Yes
Ground Balance Type
Fixed Ground Balance
Trash Density
-
Pinpoint
-
Sensitivity Adjust
Sensitivity Knob (7 preset levels)
Tune / Noise Cancel
Semi Automatic
Threshold
Threshold Tone or Heartbeat Conformation Tone
Target Volume Adjust
Yes
Battery
4x C Cell LR14 Alkaline or Rechargeable (NiCad or NiMh)
Low battery alert
Yes
Length
1,530mm - 750mm (packed length 405mm)
Weight
2.6 kg
Warranty
15 Months
SWD01220
