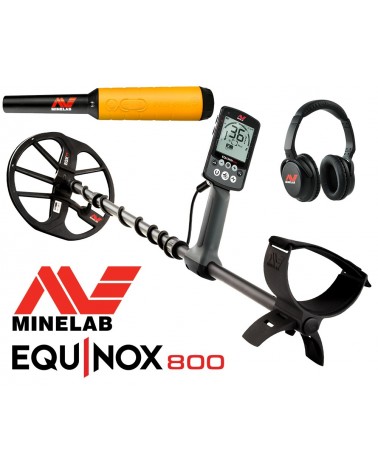

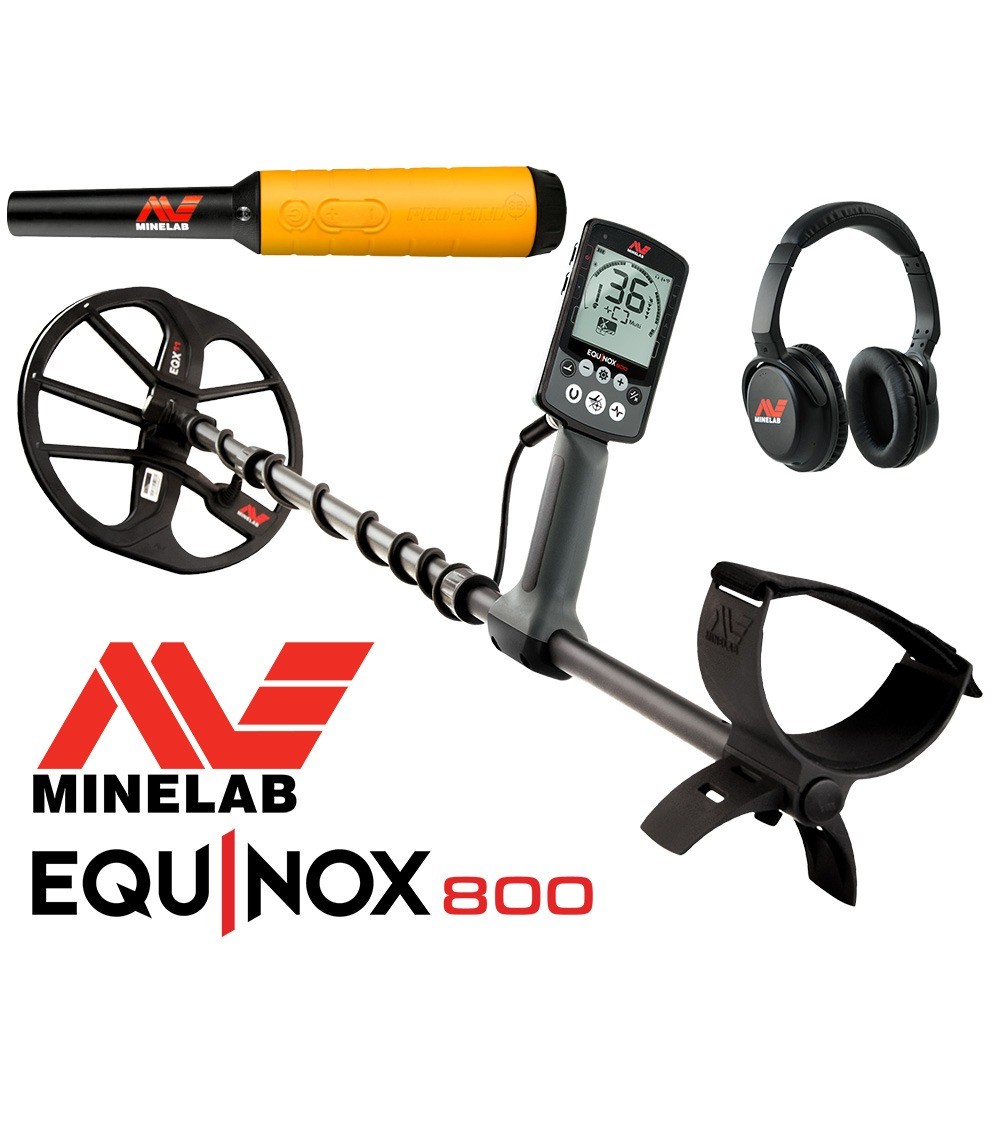

MINELAB EQUINOX 800 + Pro-Find 35

CHF1,079.10 Save 10%

The EQUINOX Series is the all-terrain multi-purpose detector that obsoletes all single frequency VLF detectors. Equally adaptable for all target types and ground conditions… just select your detecting location and go!

Now with a Minelab Pro-Find 35 Promo .

In stock

Secure payment : Paypal, Swissbilling, Twint or bank transfer .

  Fast delivery in Switzerland

and throughout Europe


Product return within 14 days

Multi-IQ multi-frequency metal detector, waterproof up to 3 meters underwater

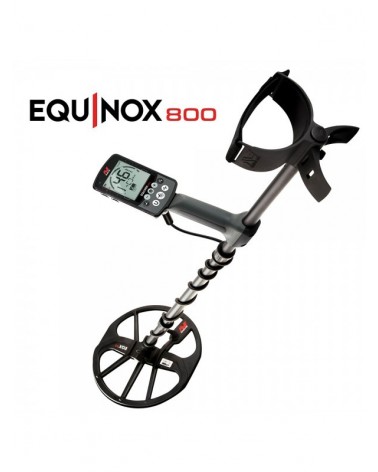

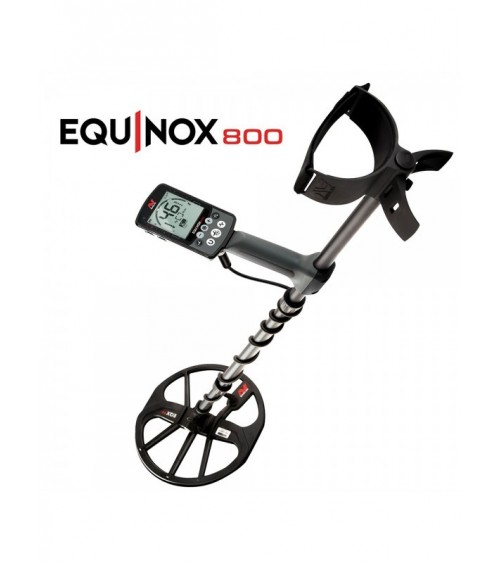

Metal detector Minelab Equinox 800

Multi-IQ multi-frequency technology
The first metal detector that has Multi-IQ multi-frequency technology with which the detector works simultaneously on all frequencies. The Equinox 800 has a 5kHz, a 10 kHz search frequency, a 15 kHz search frequency, a 20 KHz and a 40 kHz search frequency. You can choose to search on a single frequency or on multi-IQ. The Equinox 800 searches for all frequencies at the same time. The advantage of a low 5 kHz frequency is that the detector has a larger depth range and the advantage of a 40 kHz search frequency is that the detector is more sensitive to small parts and gold (nuggets). The Multi-IQ combines the best of all five frequencies!


Why Multi-IQ?

The detectors of the Vanquish series, together with those of the Equinox series, are the only detectors in the world that have Multi-IQ technology. With this revolutionary new technology, you have the combined performance of multiple detectors in one - they all work for you at the same time! Just switch it on and get started.

What does Multi-IQ mean?

Multi-IQ means that the detector searches on several frequencies at the same time. Where other detectors only have a single search frequency (e.g. 14 kHz), the Equinox offers multi-frequency technology and searches on all frequencies between 5 to 40 kHz simultaneously! The advantage of this is that a low search frequency provides much greater depth performance than high frequency detectors, now combined with the advantages of high frequencies, which makes detectors much better able to detect gold and small parts than low frequency detectors.

An example:

If you have a detector with a search frequency of 5 kHz, you will probably be able to find larger objects very deep, but you will often miss smaller pieces of gold. If you have a detector with a search frequency of 40 kHz, you will be able to find the smallest gold chain, gold nuggets and earrings very well, but with less depth power; and therefore miss the larger, lower-lying objects again. As the Equinox 800 searches on all these frequencies simultaneously, you will never miss any more objects and you will always have optimal depth performance!

Metal detector Minelab Equinox 800

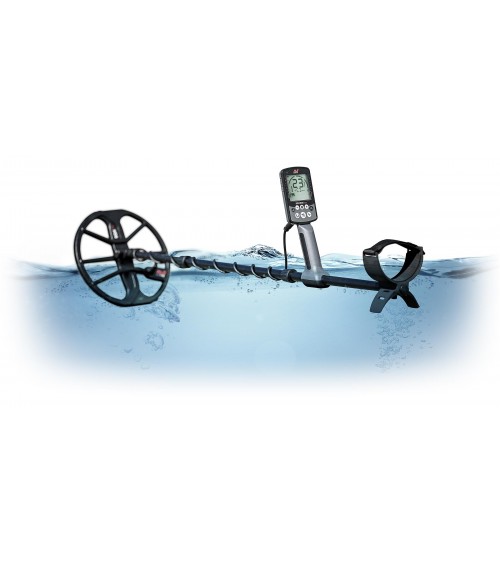

Completely waterproof up to 3 meters under water, suitable for fresh and salt water, also carefree probing in the rain.

Search Modes
The Equinox 800 has 4 search modes. A search mode for parks, one for fields, one for beach and one for gold.

Minelab Equinox 800 also for the gold nugget search!
Built-in bluetooth + wifi WM08 radio system  including radio headphones
The Minelab Equinox 800 has a built-in bluetooth + wifi WM08 wireless system including wireless headphones. There is also a connection for an optional cable headphone or underwater headphones. There is also the  adjustable  volume directly on the detector for built-in loudspeakers and cable headphones
Built-in Li-ion battery
The Equinox 800 has a built-in Li-Ion battery that is rechargeable with a magnetic USB port. The battery life is approx. 10 - 12 hours until a charge is necessary. You can also charge the Equinox via USB via a power bank while searching, so you can search and charge at the same time!
Weight and search coils
The weight of the Minelab Equinox metal detector is only 1.3 kg! And that with a strong, large 11-inch double-D search coil.
Optionally there is also a 6 inch spool and a large 15 x 12 inch spool.
The ground balance can be carried out both automatically and manually. The manual ground balance is important for difficult ground conditions.
Reaction speed
The reaction speed of the Equinox detector is extremely fast. This is very important to see if there are several objects next to each other. You never miss an object again! The recognition and separation of the different types of metal is perfect!
Object identification
The Equinox has an object identification in guide values, which can be easily read on the display during the search. The conductance values ​​run from -9 to 0 for iron objects and from 0 to 40 for the detection of more valuable objects, whereby silver objects have higher conductance values ​​and gold objects, for example, a medium-high conductance value. Of course, you can also hide the iron objects from -9 to 0 with the discrimination function.
Display lighting
The Equinox series has backlighting, perfect for searching in twilight or dark areas.
Pinpoint function
There is also a pinpoint function for recording the exact location. With the help of the pinpoint function, you can dig out the objects quickly and easily. It is also possible to update the Equinox software via USB.
Search frequency 5kHz, 10kHz, 15kHz, 20kHz, 40kHz and multi
technology Multi-IQ and 5FX8
Type metal detector Digital
service Pushbuttons
Number of search modes 2x park, 2 x field, 2 x beach and 2 x gold mining modes
Search coil28cm / 11 "double-D search coil
Weight metal detector 1.34 kg
Adjustable rod length approx. 106-129cm, adjustable
Adjustability and shape of the linkage Easily adjustable, with a round rod.
Control unit (electronics) watertight Completely waterproof, up to 3 m under water
Headphone jack Yes, 3mm jack connector, and it is also a waterproof connector for Minelab's waterproof headphones.
Built-in wireless module Yes, for the supplied Bluetooth headphones from Minelab.
target group Beginners, advanced, gold prospecting and searching in the water
Type and number of batteries Li-Ion battery, located in the handle
Battery life 10 to 12 hours
Readable battery level indicator Yes, in 3 stages
Readable depth range Yes, in 5 stages
Soil mineralization can be read on the display No
Ground balance Yes, manual, automatic and tracking
Sensitivity (sensitivity adjustment) Yes, 1 to 25
Pinpoint function Yes
Discrimination of unwanted objects Yes
Notch filter Yes
Notch volume No
Object identification through audio tones (metal type recognition) Yes, 1, 2, 5, or 50 tones
Object identification readable on the display (metal type recognition) No
Conductance display (metal type detection)  Yes, from -9 to 40 (-9 to 0 is iron, and 1 to 40 is non-ferrous.)
Recovery speed (reaction time) Very fast, adjustable in 8 levels
Volume control Yes, 0 to 25
Display lighting Yes, to 3 different brightnesses
Backlight push button No
Search coil lighting No
Vibration as a metal detector signal No
Online software update Yes
Frequency changer Automatic interference suppression
Threshold (background tone) Yes, 0 to 25
Operating software in different languagesEverything with symbols (universal)
Depth range of small objects (1 Chf ) 40 cm
Maximum depth range large objects 1.5 m
Suitable for use on the coast Yes
Suitable for wading (completely underwater) Yes
Suitable for diving Yes, up to 3 meters
Suitable for mineralized soils Yes
Suitable for wet salty soils (by the sea) Yes
Suitable for finding gold nuggets (Africa, Australia) Yes
Other additional functions

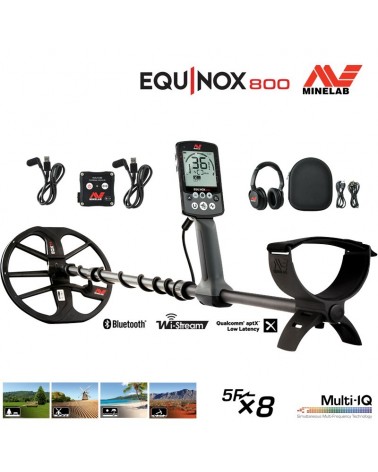

Scope of delivery:

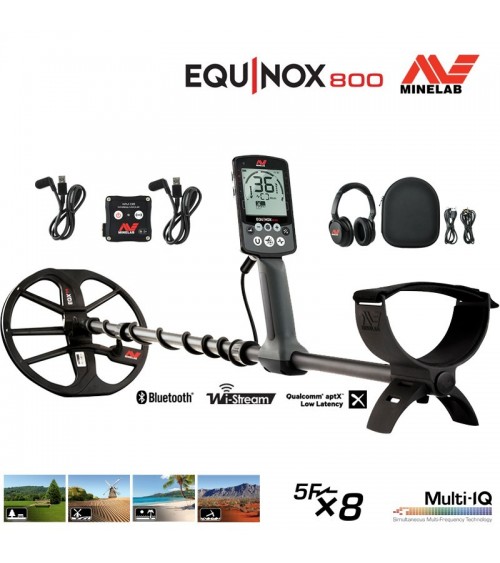

  • Minelab Equinox 800 metal detector with 28cm / 11 "DD search coil
  • Built-in bluetooth + wifi WM08 radio system  including radio headphones
  • USB cable

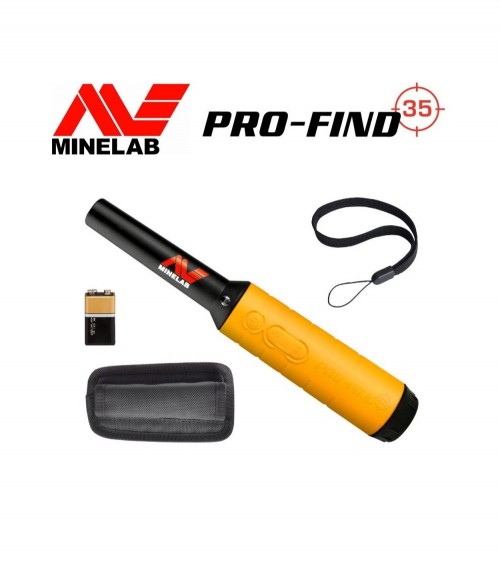

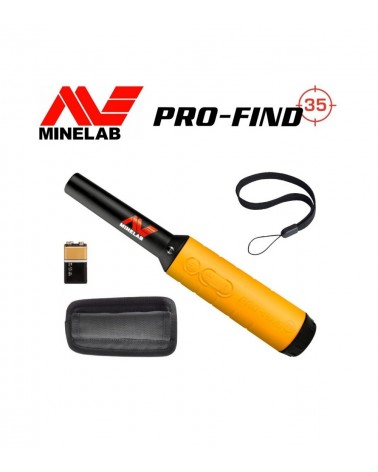

  • Pro-Find 35 Pinpointer
  • operation manual
  • 2 year warranty
  • And 1 year additional manufacturer warranty

Écouteurs Bluetooth sans fil / à faible latence aptX™

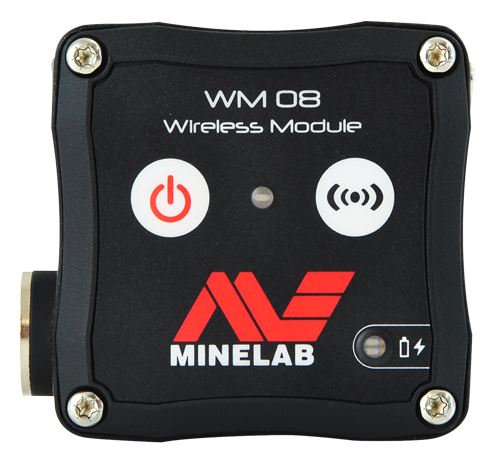

Module audio sans fil WM 08

Câble de recharge USB avec connecteur magnétique

Protections pour écran multilingues

Guide de prise en main
